Apparatus for the study of defect chemistry of solid state

at high temperatures and various activities of gasses, based on the physical method for controlling the partial pressure of different gasses

Determining the equilibrium concentration of defects at high temperatures is essential in studying innovative materials’ physical and chemical properties, e.g., materials for gas sensors, heterogenous catalysis, high-temperature fuel cells, resistive switched memories, piezoelectric/ferroelectric oxides, etc. For such analysis of the type of defect, their concentration and activation energy can be determined using different physical and chemical techniques.

The most popular method of defect chemistry is based on measuring the electrical conductivity as a function of the partial pressure of different oxidizing and reducing gases. Although such investigations are essential and have a long tradition, a crucial point is controlling the gas partial pressure, such as the oxygen partial pressure. The pressure can be adjusted by conventional gas mixing (buffer gases, like CO/CO2 or H2/H2O) or electrochemically using the oxygen pump (YSZ).

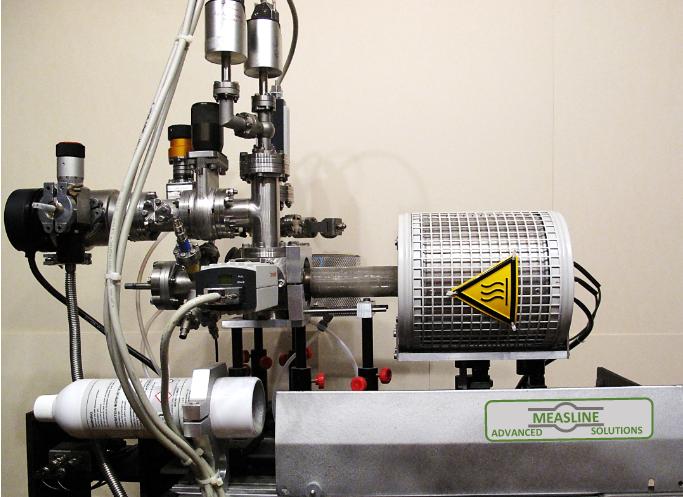

Defect Analysis Device
Sample Measurement Scheme in a Four-Electrode System

Conductivity measurements under controlled partial pressures for investigating defect chemistry

This new method for controlling partial pressure connected the possibility of generating the XHV or  UHV conditions and the precise introduction of the defined doses of various gases in the vacuum system. Additionally, in our apparatus, the partial pressure of the gases is not dependent on the temperature of the mixing gases or the temperature of the oxygen pump, which needs sufficient ionic conductivity; therefore, the YSZ pump or sensor cannot be used below 500 °C.

The advantage of this technique is the ability to include, in the interpretation of data from electrical conductivity measurements (obtained in 4-point geometry), direct information about the physical and chemical properties of the surface, which are essential for the analysis of the mechanism of exchange between the gas and surface interior. This comparison doesn’t directly offer the chemical and electrochemical methods. Using surface-sensitive methods for the study of stoichiometry, electronic structure (using XPS, synchrotron radiation, EELS), crystallography, defect distribution (LEED, STM, AFM), and measurement of local electrical conductivity (with atomic resolution-LCAFM) of the surface layer can broaden the field of analysis while interpreting data from macroscopic conductivity measurements only.

Tests carried out for model oxides (here, the single SrTiO3 crystal) have shown perfect conformity between Brouwer’s diagram and the point defect diagram, which has been determined based on classical control of the partial pressure.

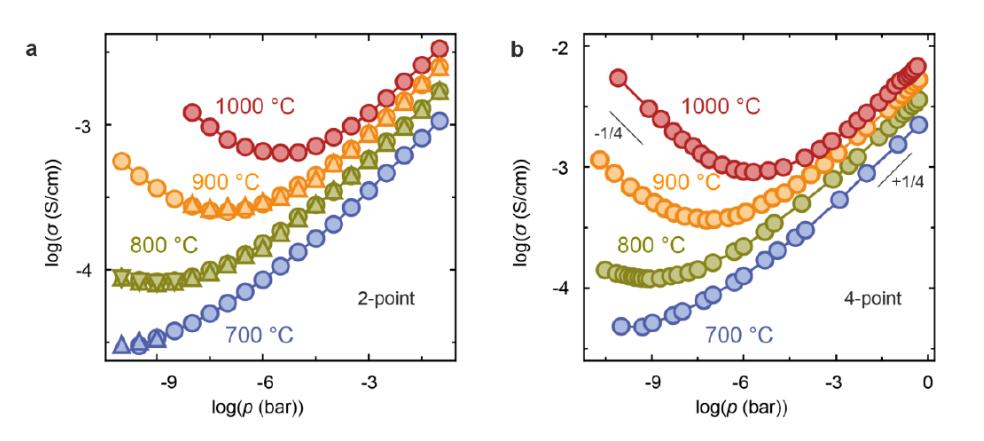

Brouwer diagrams of model materials for defect chemistry (here SrTiO3 single crystal) determined with the apparatus for 2-point and (b) 4-point geometry.

Brouwer diagrams of model materials for defect chemistry

The most significant device features:

  • Independent of Gas Temperature and Oxygen Pump Limitations
    – Partial pressure control is not dependent on the temperature of gas mixtures or the operation of oxygen pumps
    – Eliminates the need for YSZ oxygen pumps, which require ionic conductivity and cannot operate below 500 °C
    – Allows experiments at lower temperatures inaccessible to traditional electrochemical control systems
  • Precise Control of Gas Partial Pressure
    – Enables operation under XHV (extremely high vacuum) or UHV (ultra-high vacuum) conditions
    – Allows accurate introduction of well-defined doses of various gases into the vacuum system
  • Possibility to obtain data on Surface Properties via Conductivity Measurements
    Enables simultaneous analysis of electrical conductivity (e.g. using 4-point probe geometry) and direct information on surface stoichiometry, electronic structure, defect distribution, local surface conductivity

Specification:

Method

DC 4-point method (with triaxial shielding of the electrical connections)

Temperature

RT-1100°C (±0.05°C )

Basis vacuum

p<5×10-10 mbar (UHV)

p<1×10‾¹² mbar (XHV)

Gas Pressure Adjustment

from 10‾⁹ to 10³mbar  – dynamically

from the pressure higher than 10‾³10³ -statically

Determination of gas pressure
(e.g., O₂, N₂, Ar, H₂)

calibrated vacuum gauge
(resolution 1% per decade to 10‾⁴ mbar, 0.01% per decade above 10‾⁴ mbar),

optional: the partial pressure of different gases measured using a mass spectrometer
(10‾⁴
mbar direct, above 10‾⁴ mbar with additional differential pumping stage)



The resistance of the sample

should not be higher than 10¹² Ohm

Measurement modes

I-const. I (100mA- 1fA), Vvar.( ± 200V, adjustable compliance)

V-const. Vmax (± 200V), I (100mA- 100fA, adjustable compliance),

Type of samples

single crystal, ceramic, powder, thin films

max. dimension 1×0.5×0.3 cm³





Method

AC 4-point methods with lock-in technique ( f =1Hz- 1kHz)

Temperature

RT-1100°C (±0.05°C)

The resistance of the sample

should not be higher than 10 Ohm

We invite you to explore the publication presenting the results achieved with the device described above: Ch. Rodenbucher et al. APL Mater. 9, 011106 (2021)
